China Max speed 11.2 km/h Shantui SD22R SD22S SD22C SD22F 220Hp Logging Dozer for Logging wholesale

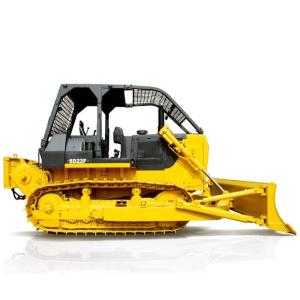

Max speed 11.2 km/h Shantui SD22R SD22S SD22C SD22F 220Hp Logging Dozer for Logging

Ask Latest Price

Video outgoing-inspection :Provided

Machinery Test Report :Provided

Warranty of core components :1 Year

Core Components :Motor, Gear

Place of Origin :Shandong, China

Brand Name :JF

Model Number :SD22F

Moving Type :Crawler Bulldozer

Machine Weight :24700 KG

Dimension(Long * Breadth * High) :5495*3725*3580

Dozing Capacity :5m³, 5.4m³, 4.3m³, 4.5m³

Warranty :1 Year

Hydraulic Cylinder Brand :JF

Hydraulic Pump Brand :JF

Hydraulic Valve Brand :JF

UNIQUE SELLING POINT :Easy Maintenance

Product name :SD22F Bulldozer

Color :Yellow

Rated power / rated speed (kW / rpm) :175/1800 Kw/rpm

Blade type :Straight, angle, U, and half-U

Blade Capacity :5m³, 5.4m³, 4.3m³, 4.5m³

Feature :High Working Efficiency

Walking Mode :Crawler Moving

Max speed :11.2 km/h

Applicable Industries :Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Food & Beverage Shops

Showroom Location :None

Marketing Type :Ordinary Product

Condition :New

Price :$85,700.00/sets 1-9 sets

MOQ :1 set

Contact Now

Add to Cart

View Product Description

Company Profile

Max speed 11.2 km/h Shantui SD22R SD22S SD22C SD22F 220Hp Logging Dozer for Logging

About Company

As a large-scale producer for excavator and bulldozer, we have a comprehensive brand and a wide range of models, which can provide
you with the most favorable price.

I look forward to answering your questions about new or used cars.
Click "Query" to get in touch with us!

Products Description

SD22F Forest logging bulldozers, developed according to the needs of the forest working environment, and equipped with a special logging anti-roll cab.

Special logging anti-roll driving shed, cab, can be configured with a wide (610mm) crawler and mechanical winch, with good passing performance and self-rescue performance, suitable for rainforest and forest farm logging, material collection and drag transportation operations.

The standard logging shovel can strongly clear all kinds of thorns obstacles on the logging road, winch is used for dragging trees and bulldozers in forest operation, winch self-rescue function can provide guarantee for the safety of the operator.

Click here for more details

Exhibition

Product Paramenters

Type section	SD22F
Long, X, width, X height (mm) (excluding soil)	5495X3725 X3580
Weight used (excluding loosening) (kg)	24700
Power / rated turn quantity (kw/rpm）	175/1800
Ground length and ground specific pressure (MPa)	2730
Ground length and ground specific pressure (MPa)		0.077
Climbing performance of (°)	30
Number of track boards (on each side)	38
Crawle plate width (mm)	610
Crawler center distance (mm)	2000
Chain rail pitch (mm)	216
Number of carriers (each side)	2
Number of heavy wheel bearings (each side)	6
Shovel knife type	Straight, angle, U, and half-U
Shovel length x high (mm)	Straight: 3,725 X 1317
		Corner: 4365X1057
		U:3800X 1345
		Half-U: 3,725 X 1376
Shovel blade capacity (m³)	Straight 6.4 angle 4.7 U7.5 half U7.0
Shoade lift height (mm)	1210
Shovel depth (mm)	540
Relaxed soil type	Single teeth; three teeth
Depth (mm)	Single tooth: 695. Three teeth: 666
Looiser lifting height (mm)	Single tooth: 515. Three teeth: 555
Forward speed (km/h)	F1:0~3.6
		F2:0~6.5
		F3:0~11.2
Backgear speed (km/h)	R1:0~4.3
		R2:0~7.7
		R3:0~13.2
